Parts Manual for 04 Series Mowers - P-11447

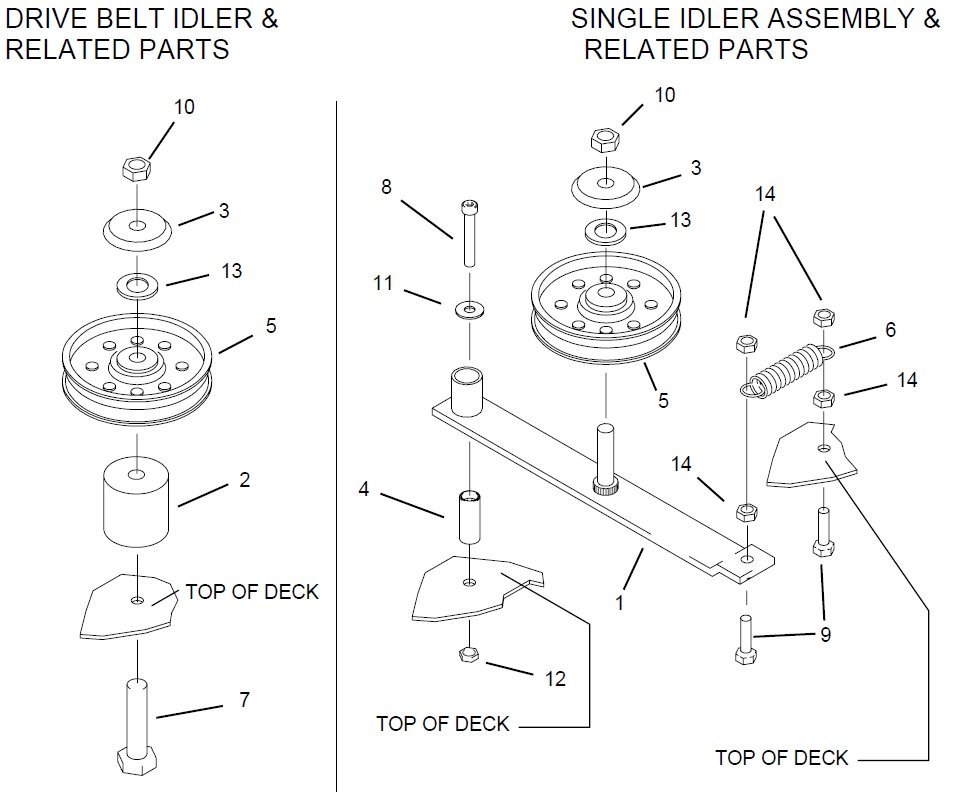

Page 1-4 ... Drive Belt Idler and Related Parts
<- Previous - Contents - Next ->
This is the parts manual for "04 Series" mowers with 52 and 60 inch "05" model decks manufactured from 2000 to 2002, including model numbers: 2304MT, 2504MT, 2204M, 2304M, 2504M, and 2304KA, and deck models 5204M and 6004M.
(a printed manual is available for purchase here)
| Ref # | Part Num | QTY | Description |
| 1 | 643-007W | 1 | Single Idler |
| 2 | 642-010P | 1 | Spacer, 2" Diameter X 2 |
| 3 | 620-201P | 2 | Bearing Cap |
| 4 | 621-103P | 1 | Pin |
| 5 | D-3338 | 2 | Pulley, Flat Idler |
| 6 | H-2092 | 1 | Spring, 1-1/2 X 5" |
| 7 | F-1779 | 1 | 1/2 - 13 X 4" GR 5 |
| 8 | F-1800 | 1 | 5/16-18 SHCS X 2-1/4" |
| 9 | F-1574 | 2 | 3/8-24 X 1-1/4 GR 5 |
| 10 | F-1378 | 2 | 1/2 - 13 Locknut |
| 11 | F-1009-02 | 1 | 5/16 Flat washer |
| 12 | F-1125 | 1 | 5/16 Locknut |
| 13 | F-1521 | 2 | 1/2" Flatwasher |
| 14 | F-1573 | 3 | 3/8-24 Locknut |
Blue underlined part numbers are available for immediate purchase by clicking the part number. For other parts, click here for ordering instructions.
