Parts Manual for 04 Series Mowers - P-11447

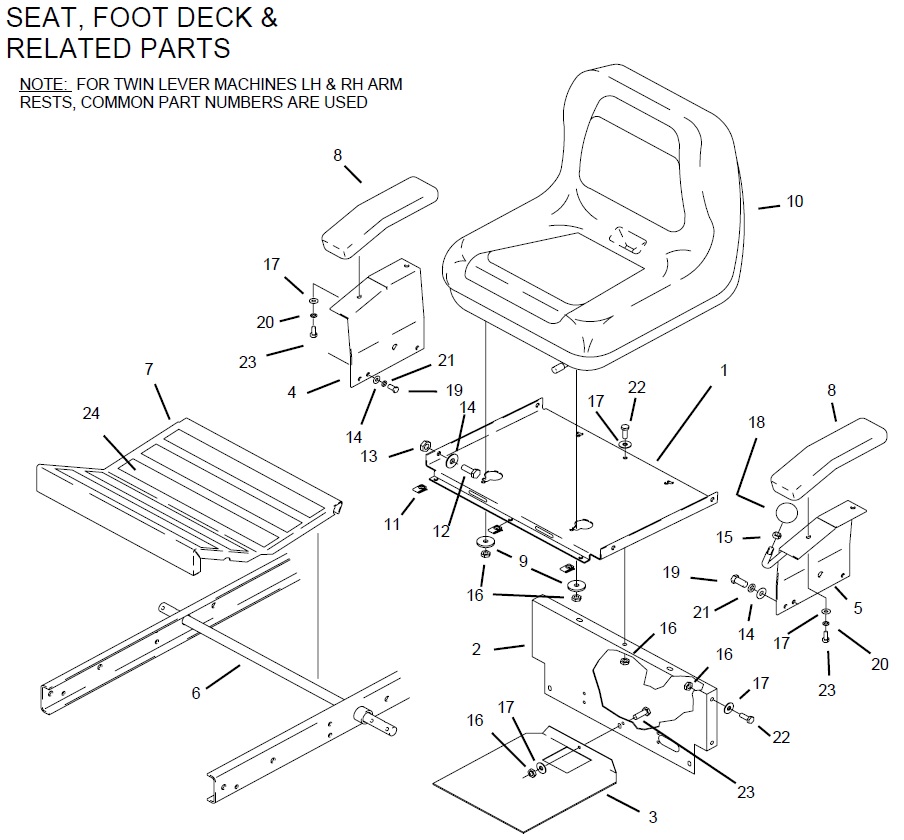

Page 2-11 ... Seat, Foot Deck and Related Parts

<- Previous - Contents - Next ->

This is the parts manual for "04 Series" mowers with 52 and 60 inch "05" model decks manufactured from 2000 to 2002, including model numbers: 2304MT, 2504MT, 2204M, 2304M, 2504M, and 2304KA, and deck models 5204M and 6004M.

(a printed manual is available for purchase here)




Ref # Part Num QTY Description   Ref # Part Num QTY Description
1 642-030P 1 Seat Bracket   12 F-1394 4 3/9-16 X 1" Grade 5
2 642-086P 1 Rear Brace   13 F-1239 4 3/8-16 Locknut, nylock
3 642-132P 1 Tank shield (early models only)   14 F-1009-03 4 3/8 Fat washer
4 636-127P 1 Armrest, RH (Joystick)   15 F-1011-03 1 3/8-16 hex nut
 - 636-163P 1 Armrest, RH (Twinstick)   16 F-1005-02 14 5/16-18 Locknut
5 636-130W 1 Armrest, LH (Joystick)   17 F-1009-02 10 5/16 flat washer
 - 636-163P 1 Armrest, LH (Twinstick)   18 H-2130 1 Grip Ball (H-3217 can replace this part)
6 620-051P 1 Lift bar   19 F-1755 4 3/8-16 X 1/2" Grade 5
7 642-139A 1 Foot deck assembly   20 F-1019-02 5 5/16 Lock washer
8 621-143A 2 Arm rest pad   21 F-1019-03 4 3/8 Lock washer
9 609-034P 2 Flat washer   22 F-1546 4 5/16-18 X 3/4" Grade 5
10 H-2229 1 Seat   23 F-1015-15 5 5/16-18 X 1" Grade 5
- H-2274 1 Seat, Deluxe   24 H-1931 5 Safety Tread
11 F-1860 3 5/16-18 U-nut

Blue underlined part numbers are available for immediate purchase by clicking the part number. For other parts, click here for ordering instructions.
